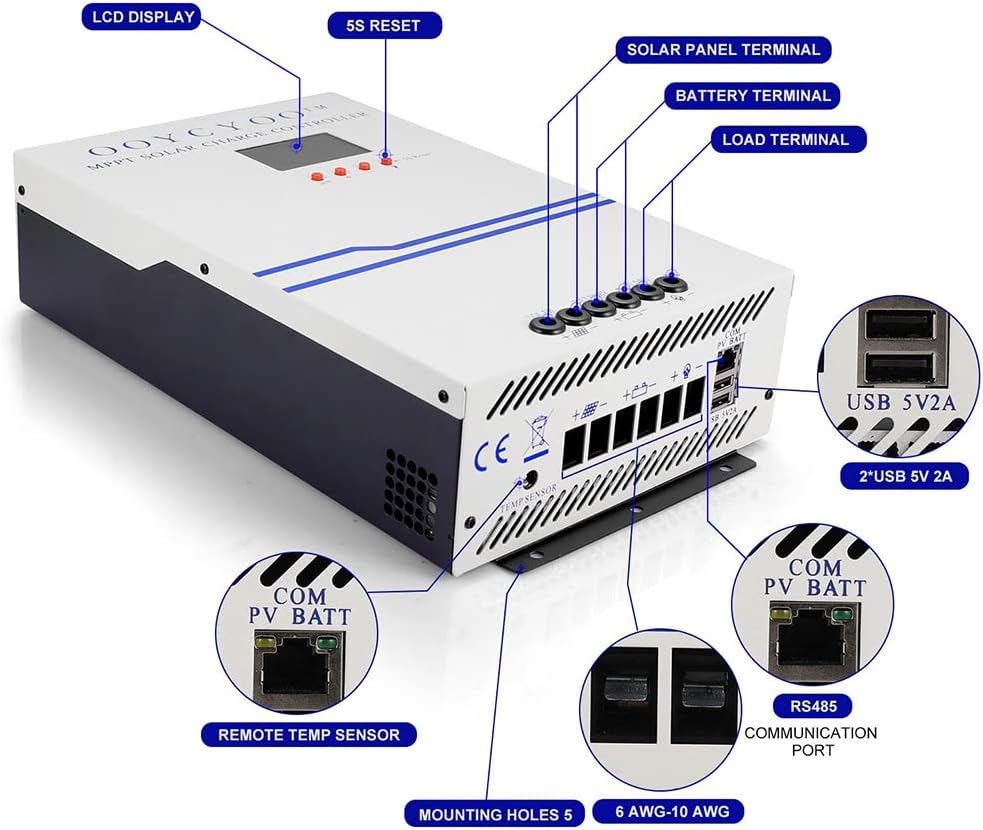

80 Amp MPPT Charge Controller MPPT 12V 24V 36V 48V Auto, 80a Solar Charge Regulator Max 150V w/LCD Display Work with AGM, Gel, Flooded and Lithium, Max Input Power 4000W

80A MPPT Solar Charge Controller , 12V/24V/36V/48V Auto Work80A mppt solar charge controller is new upgrade version，Better funcations and advanced technology .Added Features: ★Blacklight LCD Display ★The display directly shows the amount of charge: KWH, without the need for other measuring instruments★Two new vents are added for scientifically designed convection cooling.★More Safety Protection★Maximum DC/DC transfer efficiency is as high as 98.7%80A MPPT Technical datas :Rated charge current:80A12V system:open circuit voltage ≤96V(Voc) maximum. PV input power:1000W24V battery system:Open circuit voltage ≤112V(Voc) maximum.PV input power:2000W48V battery system:Open circuit voltage ≤150V(Voc) maximum.PV input power:4000WSystem nominal voltage :12V/24V/36V/48V DC Auto identifyingMax.PV open circuit voltage:150VDCPower terminal:10 AWGDimension: 12*7.8*3.2（in）Weight : 9.5(LB)Protection function: PV Over Current/powerPV Short CircuitPV Reverse PolarityNight Reverse ChargingBattery Reverse PolarityBattery Over VoltageBattery Over DischargeBattery Overheating,Controller Overheating Lithium Battery Low TemperatureLoad Short CircuitLoad OverloadTVS High Voltage TransientsPackage List: 1 x 80A MPPT Solar Charge Controller1 x Temperature sensor1 x User Manual (English)

• 【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery.
• 【Efficient 80A MPPT Solar Charge Controller】The 80A mppt solar charge controller is compatible with 12V/24V/36V/48V system voltages and features innovative MPPT (Maximum Power Point Tracking) technology with tracking efficiencies up to 99% and peak conversion efficiencies up to 98%.
• 【Full battery charging protection】Built-in PV array short-circuit protection, PV input over-current protection, load short-circuit protection, PV polarity reversal protection, battery polarity reversal protection, over-temperature protection and many other battery protection functions make it safer to use.
• 【Wide Range Voltage/Powe Support】100a solar charge controller supports High PV Input Power/Voltage. The charger controller can accept Solar voltage up to 150V. When the battery is 12V system: Suggest Solar power 1000W, suggest pv input voltage range: DC20V~DC80V; 2000W 37~105V when in 24V; 3000W 50~150 when in 36V; 4000W 72-150v when in 48V.
• 【Dual Cooling, Efficient Heat Dissipation】The 80 amp charge controller is constructed with die-cast aluminum, ensuring excellent heat dissipation and reduced power consumption. Additionally, it features a turbofan fan for efficient cooling (activates at temperatures >45°C and turns off <40°C). The upgraded turbofan fan cooling system is quieter and more effective, making it suitable for use in RVs, commercial vehicles, boats, yachts, and solar systems.
