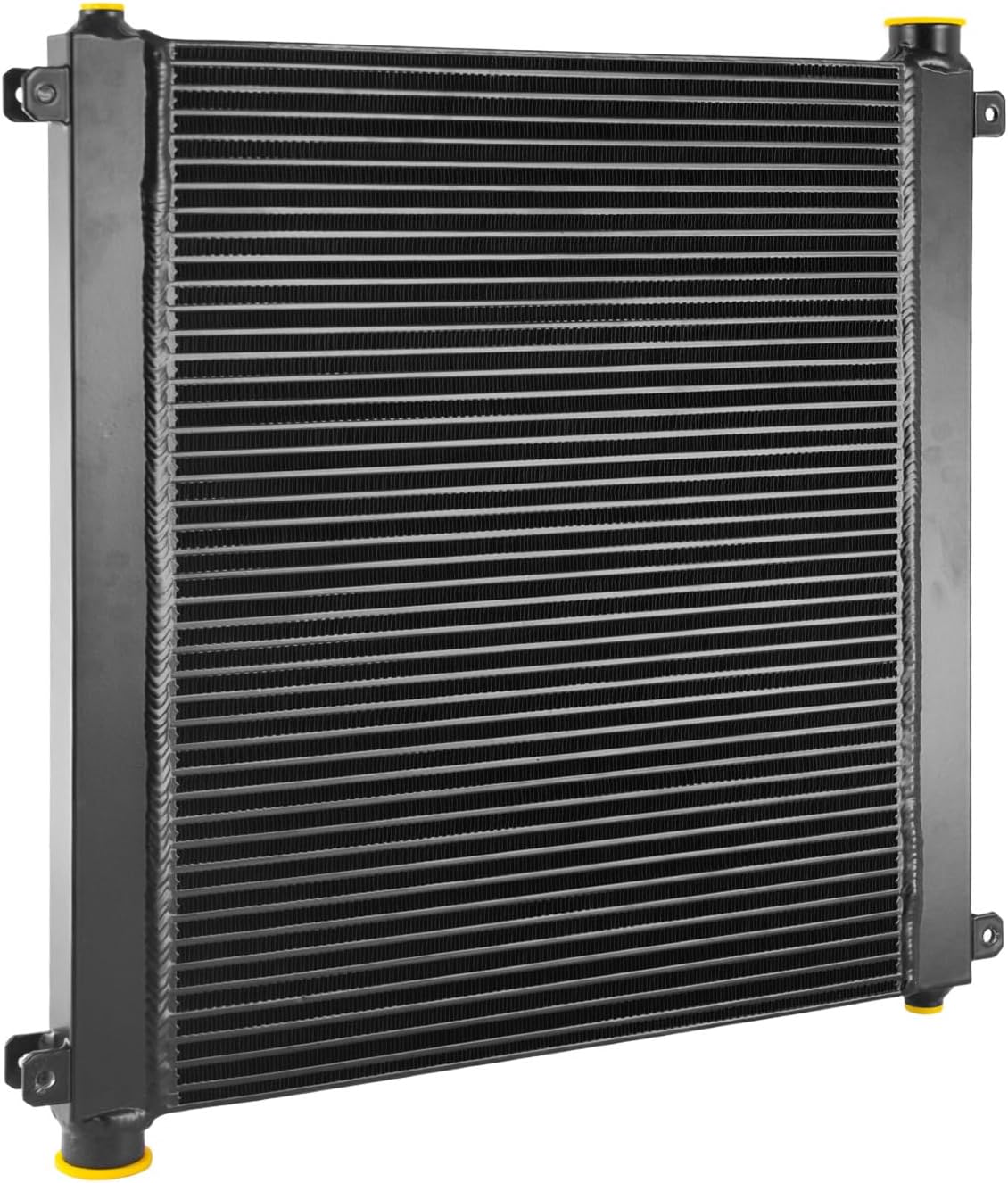

Aluminum Bar&Plate Air Compressor Belt Guard Cooler 19.68"W x 24"H Core Air Compressor Belt Guard Cooler Oil Cooler

APPLICATION: Air Compressor cooler Specification: Brand: Cubauto radiador de aluminio CORE BETWEEN TANKS: 19.68" CORE WIDTH: 24" CORE THICKNESS: 1.57" INLET: 1" NPT OUTLET: 1" NPT LENGTH BETWEEN MOUNTS: 24.63" WIDTH BETWEEN MOUNTS: 21.5" CROSS REFERENCE: M30-76941 FEATURES: This bar and plate air compressor belt guard cooler is a high-efficiency aftercooler exclusively designed for reciprocating air compressors, featuring a compact integrated design with the compressor’s belt guard and outstanding heat exchange performance. Its core features are summarized as follows: Bar & Plate Core for Superior Heat Transfer Brazed aluminum alloy bar and plate construction delivers an expanded heat exchange surface area, enabling high-efficiency heat transfer that rapidly cools high-temperature compressed air to near ambient temperature and effectively condenses water vapor for separation. Belt Guard-Mounted, Space-Saving Design Directly mounted on the compressor’s belt guard without the need for additional installation space or support brackets; ideal for small and medium-sized air compressor systems with limited layout space. Passive Airflow, Energy-Efficient Operation Leverages the natural airflow generated by the rotating compressor belt pulley/fins for cooling, eliminating the need for auxiliary fans, motors or external power supply, realizing zero additional energy consumption and low operating costs. Robust & Vibration-Resistant Structure One-piece brazed aluminum structure offers excellent resistance to vibration and impact, adapting to the harsh industrial working environment of air compressors and ensuring long-term stable operation. Low Pressure Drop, Enhanced System Efficiency Optimized internal flow channel design minimizes compressed air flow resistance and pressure loss, which not only reduces energy waste of the compressor but also improves the overall volumetric efficiency of the air compression system. Compact & Lightweight Compared with traditional tube-fin aftercoolers of the same performance, it is smaller in volume and lighter in weight, with high integration and easy installation and disassembly. Low Maintenance & Durable Smooth bar and plate surface is not prone to dust accumulation and blockage, reducing cleaning and maintenance frequency; the aluminum alloy material has good corrosion resistance, extending the service life of the product. Effective Moisture Removal, Air Quality Improvement Efficient cooling removes a large amount of condensed water from compressed air, preventing pipeline corrosion, pneumatic tool damage and air quality degradation, and ensuring the stable operation of downstream pneumatic equipment and processes.

• Type: Oil Cooler;OE/OEM Part Number: 26088, M30-76941
• Black Bar Plate Air Compressor Belt Guard Cooler 19 2/3'' x 24'' # 26088 US
• Leak Tested, Downflow Radiator, Durability Tested;Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
• This bar and plate air compressor belt guard cooler is a high-efficiency aftercooler exclusively designed for reciprocating air compressors, featuring a compact integrated design with the compressor’s belt guard and outstanding heat exchange performance
• Low Pressure Drop, Enhanced System Efficiency: Optimized internal flow channel design minimizes compressed air flow resistance and pressure loss, which not only reduces energy waste of the compressor but also improves the overall volumetric efficiency of the air compression system.
