Waveshare SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, GNSS Positioning, Global Band Support
$51.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mycnhremanconnect.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$51.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mycnhremanconnect.com
Free 30-day returns Details
Product details
| Management number | 209084191 | Release Date | 2026/03/29 | List Price | $20.80 | Model Number | 209084191 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

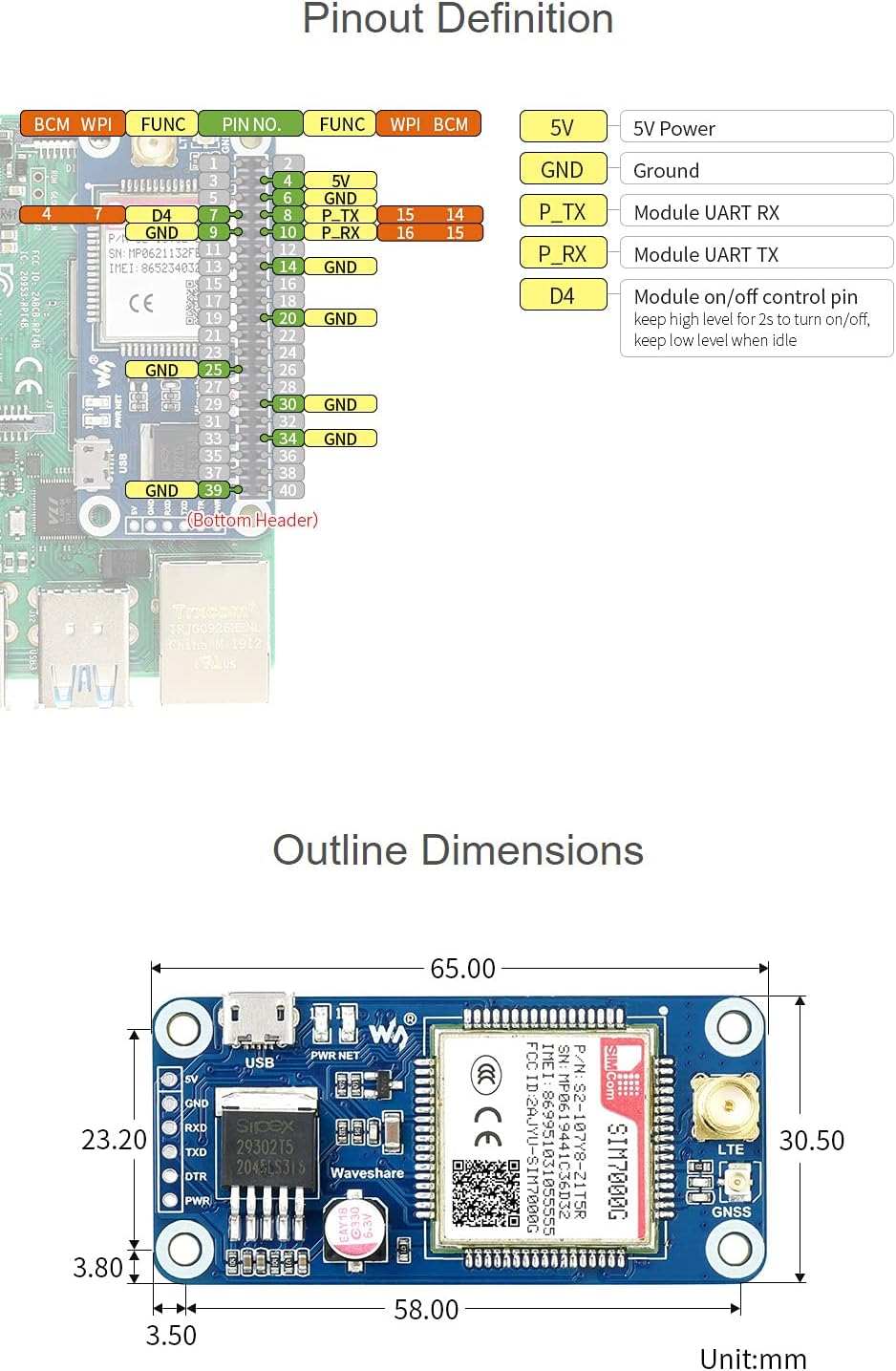

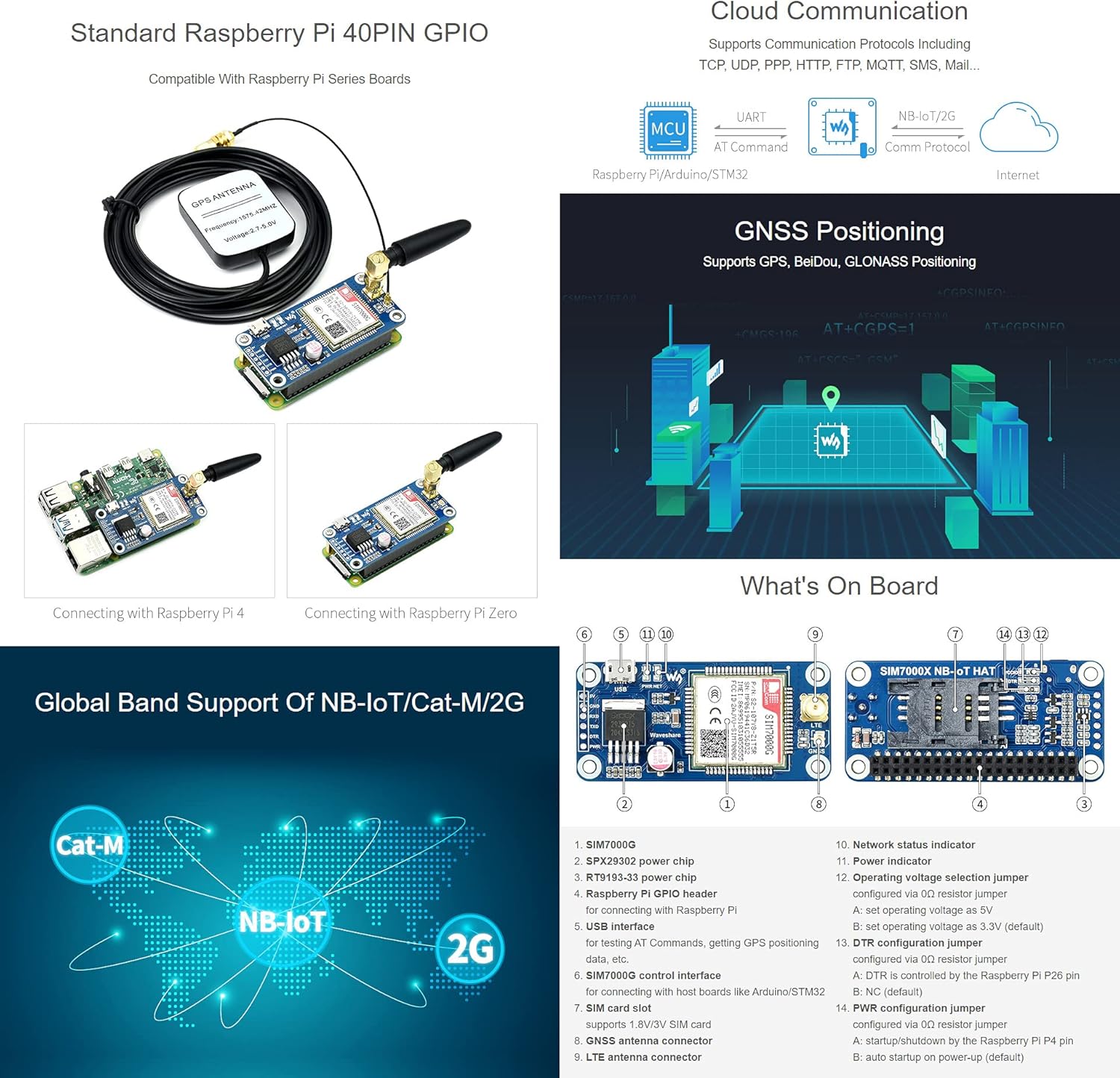

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
| UPC | 794304544741 |
|---|---|
| Brand | waveshare |
| Model Name | SIM7000G |
| Manufacturer | Waveshare |
| Model Number | SIM7000G NB-IoT HAT (EN) |
| Mfr Part Number | SIM7000G NB-IoT HAT (EN) |
| Processor Brand | Waveshare |
| Processor Count | 1 |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Compatible Devices | Raspberry Pi models (5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH), Arduino, STM32 host boards |
| Wireless Compability | 802.11b |
| RAM Memory Technology | LPDDR4X |
| Connectivity Technology | GPIO, USB |
| Item Dimensions L x W x H | 2.56"L x 1.19"W x 1.19"H |
